Modulift MOD6 Spreader
Price Per Each Cookes SKU 694224
Out of Stock
Check In Store Availability
This product has been added to your favorites
This product has been removed from your favorites
Item(s) added to cart successfully.
Features
- Mix and match components to re-use at different spans.
- Modular, lightweight and portable.
- Rated at 6t SWL at 3.6 meters span (60°ISA). See Load Table for SWL at longer spans.
- ‘Included Sling’ angle, 0, 90 degrees or less.
- End Units & Drop Links are rated at 3t WLL each (6t combined capacity).
- Bolt tightening torque: 60Nm.
- Spanner size required: 17m
- Recommended additional equipment: Torque Wrench, Podge Spanner, and Ring Spanner

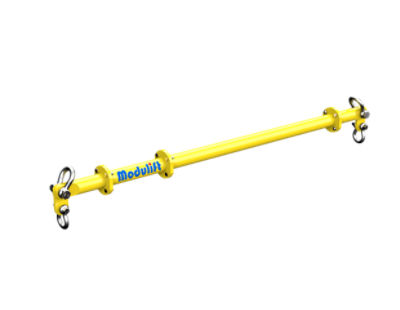

MODULIFT MOD 6
A portable, versatile, lightweight solution with various configurations to a range of lifting applications & environments.

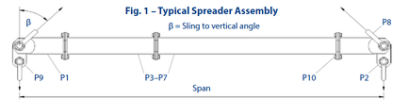

The Modulift Spreader is modular in length, and every spreader consists of 1 pair of End Units and Drop Links, with intermediate struts that can be bolted into the assembly to achieve different spans. MOD 6 has an assembled span ranging from 400mm to 4.5m in 100mm increments.
