JDN Mini Series – Flame Proof Air Hoist, 3m Lift
JDN Mini Series – Flame Proof Air Hoist, 3m Lift
JDN Mini Series – Flame Proof Air Hoist, 3m Lift
JDN Mini Series – Flame Proof Air Hoist, 3m Lift

JDN Mini Series – Flame Proof Air Hoist, 3m Lift

Price Per Cookes SKU 694068

add to favorites-icon Add to Favorites
  • 125kg
  • 250kg
  • 500kg
  • 980kg
reduceQuantity increaseQuantity
Product out of stock

Out of Stock

Request a Quote
Info Icon

You can Request a Quote after adding the product to your cart.

Request a Quote
Info Icon

You can Request a Quote after adding the product to your cart.

content-img

This product has been added to your favorites
content-img

This product has been removed from your favorites
Product availabilty

Item(s) added to cart successfully.

Product Specifications

Features

  • Complies with AS1418.2.
  • Patented pre-lube motor design for low maintenance, oil-free operation.
  • 100% duty rating and unlimited duty cycle suits all environmental conditions.
  • Only six atmospheres of compressed air required (approx. 6 bar).
  • Insensitive to dust, humidity and temperatures ranging from -20°C up to + 70°C.
  • Suitable for horizontal pulling. Fail-safe brake, in case of air supply failure.
  • Self-cooling economic air motor which will not overheat.
  • Wear resistant motor braking system.
  • Extremely sensitive lever control with emergency shut-off valve; max. control length 6m.
  • Price competitive alternative when compared to other types of powered hoists.
  • Easy operation and low maintenance design.
  • Manufactured in Germany.

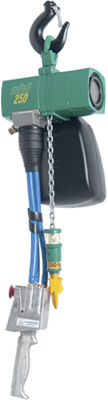

Flame Proof Air Hoist - JDN Mini Series, 3m Lift


The JDN Mini Series widens the range of applications in the light duty sector as a handy, flexible and light-weight hoist. It is available in 3m or 5m lift heights only. All JDN Pneumatic Hoists and trolleys comply to ATEX EX II 3GD IIA T4 regulations. Extra protection is further available to Zone 1, Group IIB, Zones 1 & 2 Group IIC and offshore special requirements such as paint thickness, spark-proof hooks, and wheels etc.
