CornerMax® Pads – Engineered Cut Protection
Price Per Each Cookes SKU 693424
Available online
203 in stock
Check In Store Availability
This product has been added to your favorites
This product has been removed from your favorites
Item(s) added to cart successfully.
Features
- Engineered cut protection designed for use on loads that have a 90° straight edge.
- Rated Working Load Limit of 4,464kg per cm of sling width.
- Attached with hook and loop tape for easy adjustment.
- The ultimate edge protection, allowing synthetic slings to be used for lifting steel or concrete beams.
- Available in 275mm lengths.
Engineered Cut Protection - CornerMax Pads

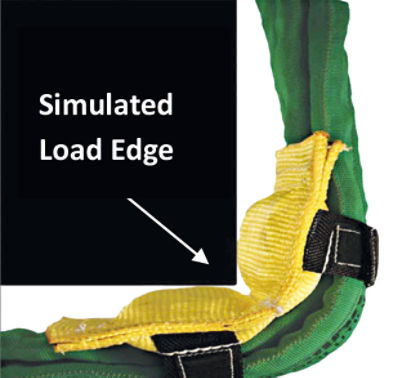

Exposure of a sling to load edges or corners requires a pad that is not susceptible to cutting because of toughness or zero contact. The CornerMax® Pad forms a tunnel between the load edge and the pad. This geometric separation is essential in protecting the pad itself from contacting the load edge, which provides maximum protection to the sling. Best fitted at time of sling manufacture for a firmer fit but can be retrofitted to existing slings. Cookes is New Zealand’s authorised distributor of CornerMax™ cut-resistant sling pads.
While these sleeves will provide moderate abrasion resistance they will offer no protection against sharp edges. Recommended where the main requirement is to protect sling fibres from dirt ingression.
A qualified and trained person must select materials and methods that adequately protect synthetic slings from damage. It is recommended a trial lift to a low height be undertaken first so slings and wear-sleeves can be inspected for damage. Never ignore damage to sleeving or pads during sling inspections.
Where a higher level of abrasion resistance is required for safety, choose high-abrasion resistant sleeves. For cut resistance choose only no-cut sleeves.
